LED wall/ceiling light
Type
Calla
Input voltage
230V
Input frequency in Hz
50-60
Colour temperature in K
3000/4000
Warranty
5 years
Lifetime in hours
50.000 L70/B50@25°C(learn more)
Light efficiency in lm/W
110
Protection class of the luminaire
IP66
Impact strength (IK)
08
Housing material
Polycarbonate
max. Ambient temperature
-25°C to +40°C
Radiation angle in °
120
LED
SMD2835
LED board replaceable
E
Weight in kg
1,2-1,4kg
Width in mm
322
Height in mm
322
Width in mm with packaging
Height in mm with packaging
77
Reflector material
-
Material cover
translucent polycarbonate
CRI
>80
Certification
CE, CB, EMC, RoHS
Meas. environmentst.
25 degrees
Colour tolerance/colour space
(0.38, 0.38) SDCM ≤4
Power factor (min.)
≥0,9
Switch-on time in μs
53
Inrush current in A
44,5
Protection class
II
Luminous flux tolerance in %:
10%
Tolerance for power consumption in %:
10%
Glow wire test
850 °C, duration: 30s
Housing colour
Fastening material
Stainless steel
Distance between fastening points
Connection
LED luminaire
2 x screw
2 x dowel
A CLOSER LOOK

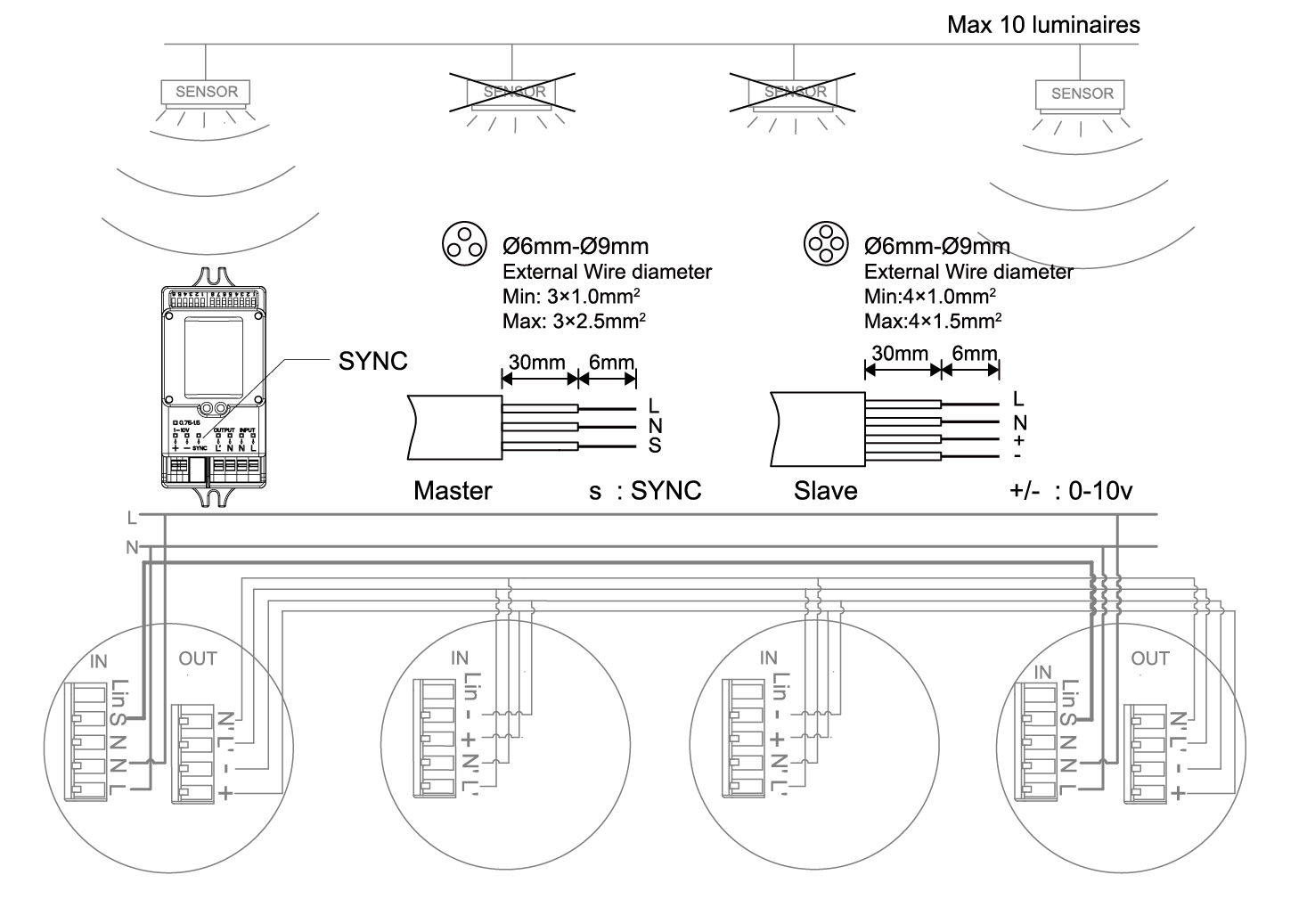

Master/slave system

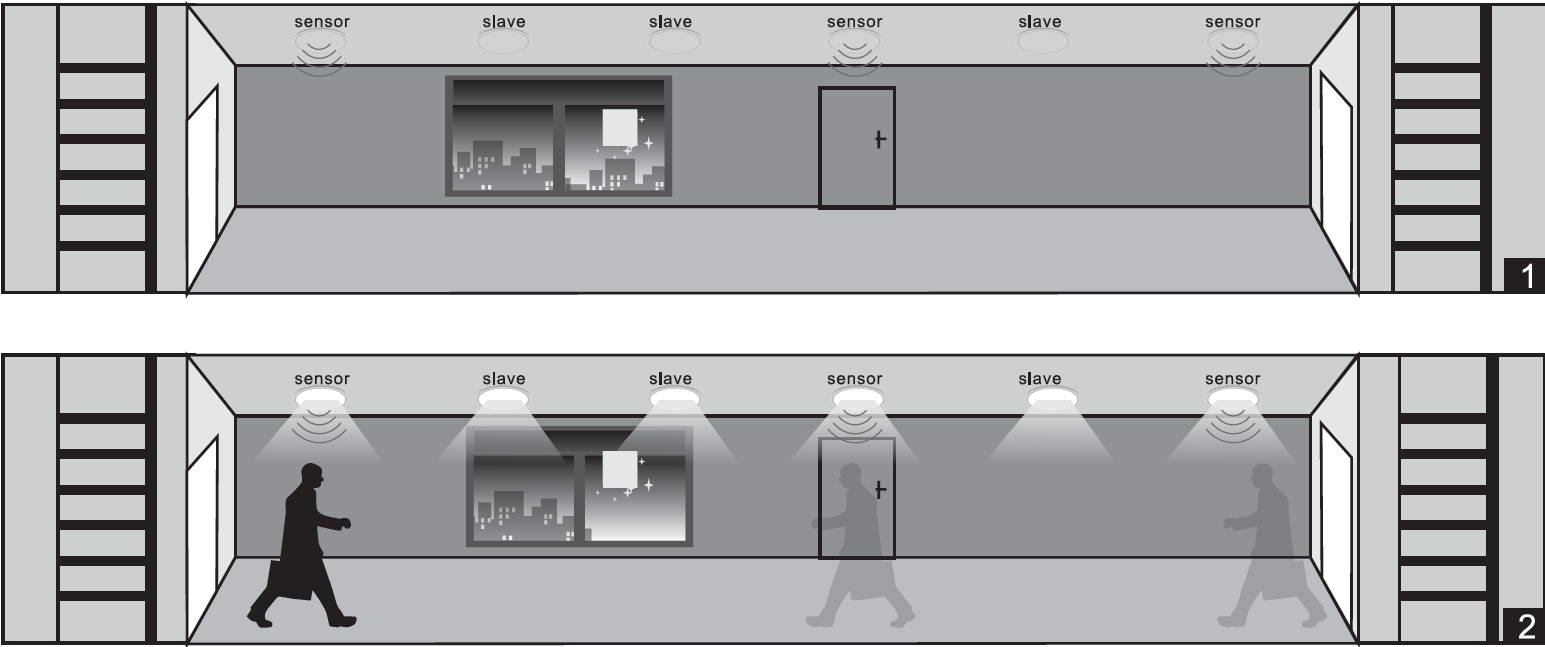

Any movement is detected from any direction, all luminaires switch on synchronously. If no movement is detected in the detection area, all luminaires are dimmed synchronously and time-controlled to a low light level and then switched off.
Through-wiring
Five-core wiring
Configuration
With motion sensor (Calla Sensor) and adjustable detection range, lighting duration, stand-by time, colour temperature, daylight sensor and dimming intensity.
WHY CHOOSE US
LED luminaires and accessories
FIND YOUR QUESTION HERE
What makes a moisture-proof luminaire?
Luminaires used in damp rooms must be specially protected against the ingress of water and moisture. They carry at least protection class IP X4.
Damp-proof luminaires are mainly used in industry and trade, but they are also the right choice for garages, swimming pools and basements. The higher the protection rating of the moisture-proof luminaire, the less it gets dirty - and the longer the maintenance intervals.
Can I connect these via a motion sensor?
Yes, it works!
Is it possible to connect the lamp in the middle of the housing or only at the ends?
Only at one of the two ends.
I have lost the retaining clips? Can I get them separately?
Yes, no problem at all! Just give us a call or send us an e-mail. It's even easier via the contact form.
Is it possible to change the bulbs in this lamp ?
You cannot change the bulbs. This makes the luminaire brighter and more efficient. However, it is not necessary to replace the bulbs, as the life span is at least 5 years if the luminaire is used 24 hours a day.
Do the luminaires have a CE marking?
Of course
What is the spacing of the fixings on the lamp? Can you slide the brackets back and forth on the housing as you like?
